NFPA 1983 2012 Edition
Ideal for rescue and rope access, this anodized carabiner's patented key-lock design does not hang up when unclipping from your harness or web. An optimized D-shape maximizes its strength, and its wide gate opening fits over 1-inch (25 mm) diameter railings, unusual for a carabiner this compact and light. Safety indicators etched on the gate augment easy one-hand operation. Manual-Lock and Auto-Lock versions are available with a removable keeper pin for use with lanyards or for terminating escape or RIT lines.
Every carabiner is proof loaded. Serial numbers on every carabiner.
| Item # | Major Axis | Minor Axis | Major, Gate Open |
|---|---|---|---|
| 300161 | 28kn | 11kn | 8kn |
| 300165 | 28kn | 11kn | 8kn |
| 300169 | 28kn | 11kn | 8kn |
| 300182 | 28kn | 11kn | 8kn |
| 300189 | 31kn | 11kn | 8kn |
| 300193 | 29kn | 9kn | 8kn |
| 300153 | 31kn | 11kn | 8kn |
Working-At-Height / Industrial Rope Access / Technical Rope Rescue
Working at height requires reliable, quality equipment. The ProTech Aluminum Key-Lock Carabiners can be used with confidence for work positioning or fall restraint protection in work-at-height maneuvers for industrial rope access or technical rope rescue when used in accordance with the regulatory safety standards they fall under. Always use life safety equipment and gear according to the regulatory safety standards for which it is classified and/or certified.
SPECIFICATIONS
| Option | Item | Product Weight | Gate Opening | Interior Length | Gate / Color | NFPA Rating | 3 sigma MBS |
|---|---|---|---|---|---|---|---|

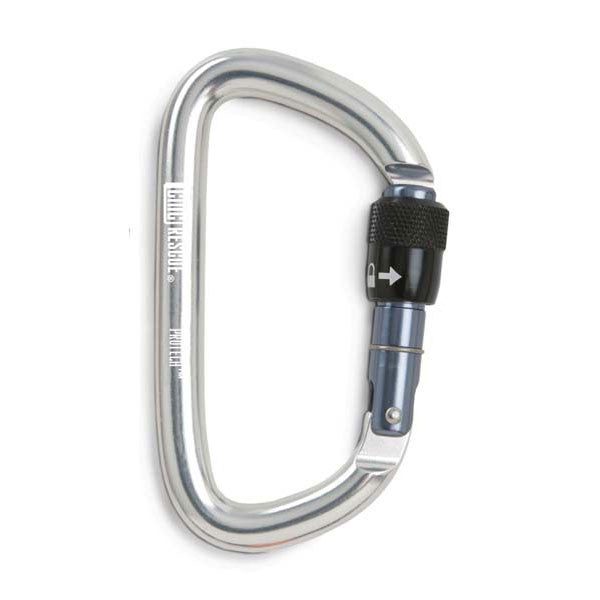

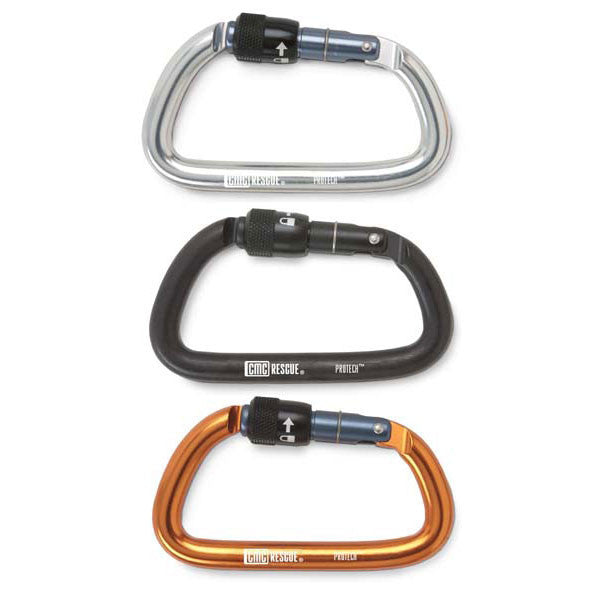

| Screw-Lock, Brite | 300161 | 2.6 oz (74 g) | 1 in (25 mm) | 3.53 in (89 mm) | Screw-Lock / Brite | Technical Use | 28 kN (6,294 lbf) |
| Screw-Lock, Black | 300165 | 2.6 oz (74 g) | 1 in (25 mm) | 3.53 in (89 mm) | Screw-Lock / Black | Technical Use | 28 kN (6,294 lbf) |
| Screw-Lock, Orange | 300169 | 2.6 oz (74 g) | 1 in (25 mm) | 3.53 in (89 mm) | Screw-Lock / Orange | Technical Use | 28 kN (6,294 lbf) |

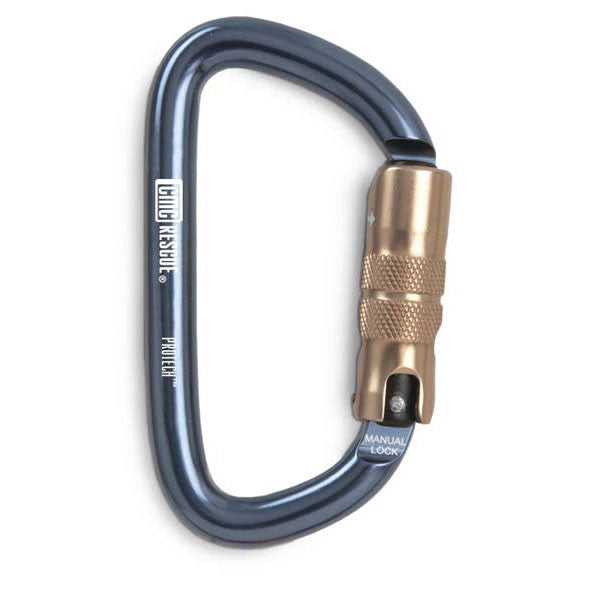

| Manual-Lock, Slate | 300182 | 2.8 oz (79 g) | 1 in (25 mm) | 3.53 in (89 mm) | Manual-Lock / Slate | Technical Use | 29 kN (6,519 lbf) |

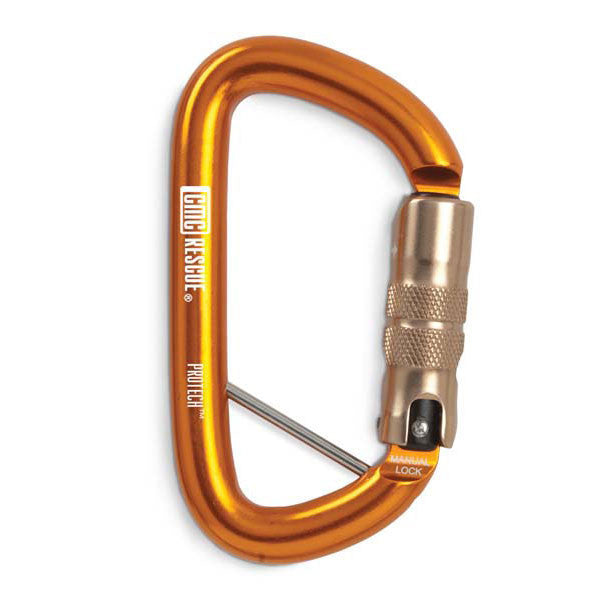

| Manual-Lock, Orange w/Keeper | 300189 | 3.6 oz (102 g) | 1 in (25 mm) | 3.53 in (89 mm) | Manual-Lock w/ keeper / Orange | Technical Use | 31 kN (6,969 lbf) |

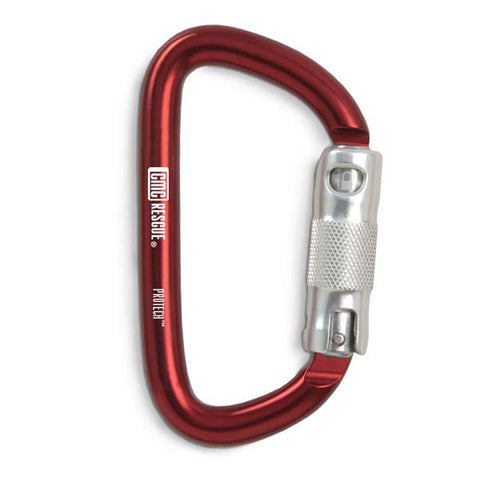

| Auto-Lock, Red | 300193 | 2.8 oz (79 g) | 1 in (25 mm) | 3.53 in (89 mm) | Auto-Lock / Red | Technical Use | 29 kN (6,519 lbf) |

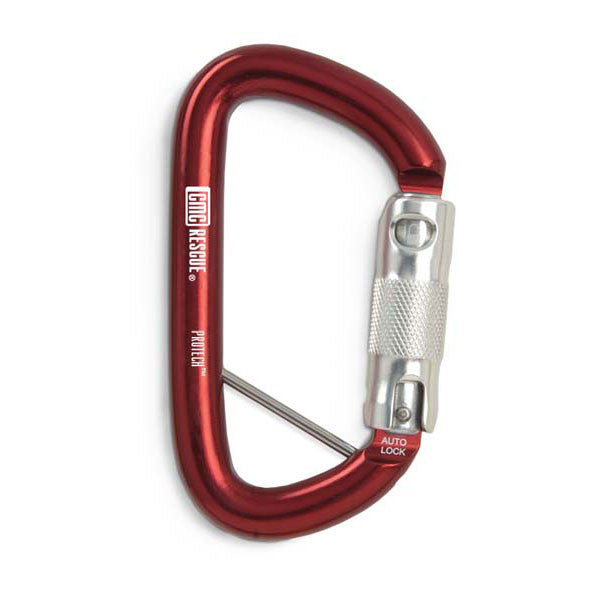

| Auto-Lock, Red w/Keeper | 300153 | 3.6 oz (102 g) | 1 in (25 mm) | 3.53 in (89 mm) | Auto-Lock w/ keeper / Red | Technical Use | 31 kN (6,969 lbf) |
DOCUMENTS
| Part # | Color | Gate Type |
| 300161 | Brite | Screw-Lock |
| 300165 | Black | Screw-Lock |
| 300169 | Orange | Screw-Lock |
| 300182 | Slate | Manual-Lock |
| 300189 | Orange | Manual-Lock withKeeper |
| 300193 | Red | Auto-Lock |
| 300153 | Red | Auto-Lock with Keeper |
