New England Short-Haul Line
Product # 724165
FEATURES

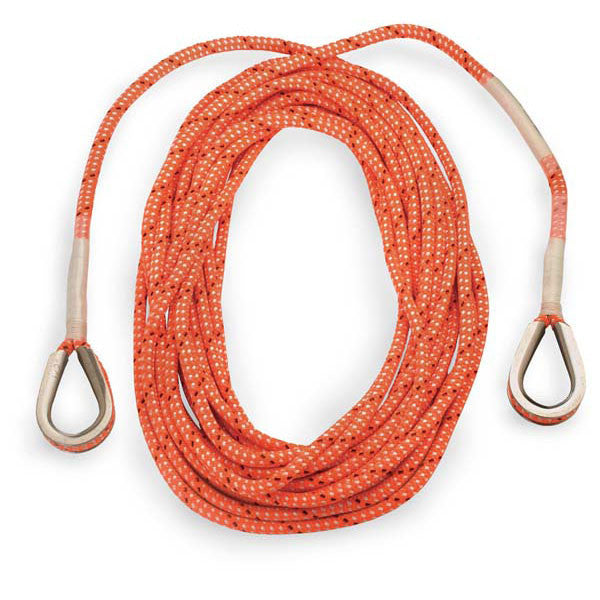

The CMC Short Haul Line features synthetic fibers that deliver an unbeatable "strength to weight" ratio. The line is non-conductive and can be stuffed and stored in a rope bag without risk of kinking or damaging the rope. These characteristics are combined with low volume storage, a high-visibility sheath, and extremely low stretch (less than 0.5% at 600 lb [272 kg]). The line comes complete with 1.5-inch (38-mm) diameter stainless steel thimbles spliced at both ends and is compliant with Department of Interior Standard 351 DM 1. Custom lengths are available by special order. Provision available for aircraft equipped with dual hook systems.
SPECIFICATIONS
| Option | Item | Product Weight | Diameter | Length | Color / Stripe | 3 Sigma MBS |
|---|---|---|---|---|---|---|
| 50 Ft | 724165 | 3.5 lb (1.6 kg) | 11 mm (7/16 in) | 50 Ft (15.2 m) | Orange / White / Black | 52 kN (11,700 lbf) |
| 75 Ft | 724163 | 5.3 lb (2.4 kg) | 11 mm (7/16 in) | 75 Ft (22.9 m) | Orange / White / Black | 52 kN (11,700 lbf) |
| 100 Ft | 724160 | 7 lb (3.2 kg) | 11 mm (7/16 in) | 100 Ft (30.5 m) | Orange / White / Black | 52 kN (11,700 lbf) |
